Series
FT
FLUID TECH SYSTEMS Offer most efficient and
economic range of Positive Displacement Rotary
Gear Pumps under the brand name "ROTOFLUID"
having special features, Simple & compact
design, Low noise High efficiency, Easy to
maintain Reliable and Low cost. "ROTOFLUID"
Rotary Gear Pumps are ideal for Chemical,
Petrochemical, Food Oil Steel, Refining, Paints,
Dairy, Sugar, &Pharmaceutical Industries
The pumps are useful for handling viscous
liquids i.e. all Kind of oils, viscous chemicals
& food application. |
| |
|
|
Series
FTRN
Proven performance & operational economy
are the chief consideration while evaluating
once pumping requirement. When it comes to
handle viscous or semi viscous liquid , "ROTOFLUID"
rotary gear pump is an obvious choice for
these very reasons.
"ROTOFLUID"
gear & screw-gear type positive displacement
rotary pumps are well accepted & loudly
acclaimed industrial pump for it's compactness,
efficiency, reliability & silent performance.
This pump have out class conventional gear
pump & have also broken the myth about
screw pumps by offering better efficiency
at much reduced cost.
|
| |
|
|
Series
FTSS

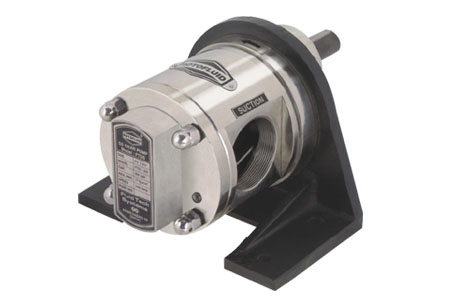

"ROTOFLUID" gear pump type 'FTSS'
is a self priming, bi-directional, positive
displacement rotary pump in all stainless
steel (SS - 136) construction with dry - Teflon
coated DU bush bearing requiring no lubrication.
These pumps are easily cleanable, easily maintainable
in 3 - piece construction. The back cover
can simply be removed by 4 - dom nut. The
rt angle mounting brackets facilitates foot
mounting of the pump on base plate with electric
motor of appropriate ratings. |
| |
|
|
Series
FTMP
This series contains flange mounted and shaft
mounted pumps having female threading at inlet
& outlet ports.
Material of Construction
• Pump Body: Graded
CI Casting.
• Rotor : Sintered
Cl Casting
• Shaft : Alloy Steel.
• Sealing : Oil Seal.
• Size: 1/4" to
3/4" BSP (8 different size)
• Range : 0.5 to 40
LPM at 1500 RPM (40°C)
• Liquid : Lubricating
oil.
The Pumps are designed to transfer the lubricating
oil with maximum working pressure is 15 kg/cm2.
|
| |
|
|
Series
FIG
This series contains Fuel pressuring internal
gear type foot mounted pumps with flange threading
at inlet & outlet ports.
Material of Construction
• Pump Body : Graded
Cl Casting.
• Shaft Rotor: Alloy
Steel - H. Nitrided & Ground.
• Idler Gear: Alloy
Steel- H. Nitrided.
• Sealing: Mechanical
Sealing.
• Size: 1/2" to
3/4" BSP
• Range: 60 to 2500
LPH.
• Liquid : Ful oil
boilers burners.
In built pressure relief valve is provided
& pump Perates up to maximum temperature
200"C (Fuel) and maximum working pressure
35 kg/cm2. |
| |
|
|
Series
FTX
"ROTOFLUID" gear pump type
'FTX' is a self priming Bi-directional positive
displacement rotary pump in simple two place
construction with casing cover & CI Grd
20 & self-lubricated sintered bronze bush
bearing. The pump can be run in either direction
with change in inlet-outlet port position.
the relief valve operations can simply be
reversed by changing the R.V. parts on opposite
side. The motorized pump-set in mono-block
design ensure perfect alignments, saves space
& reduces down time.
|
| |
|
|
|
