POLISHERS
& GRINDERS, ETC.. |
|
 |
Polishing
Machine "from 0.33 HP to 10 HP"
"POWER MASTER"
Double Ended Bench type Polishing
Machines from 0.33 HP to 3.0 HP with
Detachable Taper units mounted on
both sides, suitable for operation
on 415 Volt - AC - 3 phase or 220
/ 230 V Single phase, 50 Cycles supply.
These Polishers are complete with
detachable taper units, four position
rotary Switch, Condenser ( only in
single phase ) in the base and connecting
cable or terminal box.
|
| |
Technical
Specifications
S.No
|
H.P. |
Spindle
RPM |
Model |
No
of Bearings |
Overall
Length |
Base
Dimensions |
Weight
(kg's) |
1. |
0.33
to 0.75 |
2800 |
1678 |
2 |
780 |
205
x 205 |
32 |
2. |
1.0 |
2800 |
101 |
2 |
1060 |
280
x 255 |
52 |
3. |
1.0 |
1440 |
101 |
2 |
1060 |
280
x 255 |
52 |
4. |
2.0 |
2800 |
1012 |
2 |
1160 |
280
x 280 |
72 |
5. |
2.0 |
1440 |
1012 |
2 |
1170 |
330
x 280 |
80 |
6. |
3.0 |
2800 |
301/123` |
2/4 |
1220 |
330
x 280 |
92 |
7. |
3.0 |
2800 |
322 |
2 |
1370 |
240
x 280 |
100 |
|
| |
|
|
| |
|
|
Bench
Grinding Machine with Pedestal
"POWER MASTER"
Double ended Heavy Duty Bench Grinding
Machines with Pedestals. These grinders
are Industrial Duty Grinders complete
with inbuilt drive suitable for operation
on AC 415 Volts Phase or 220 / 230 V
Single Phase, 50 Cycles Supply. Each
grinder is complete with two grinding
wheels. One fine & one coarse, two
wheel Guards with exhaust outlets, two
adjustable tools rests, rotary switch,
condenser (only in single phase) in
the base and connecting cable or terminal
block.
"manufacturers,
suppliers, wholesaler and exporters
of Pedestal Bench Grinding Machine."
|
| |
| |
| |
|
|
| |
|

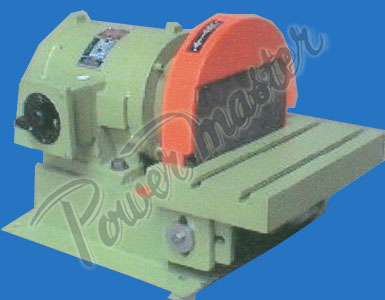

Vertical
Disc Grinders
"POWER MASTER" Bench type
Disc Grinders are suitable for Edge
Grinding,Radius Griniding of components.
Disc Grinders are available in 0.5 HP
Disc dia 8", 1.0 HP 10"/12",
2.0 HP 14" in different table sizes.
They have a Heavy duty direct drive
Motor, Dynamically Balanced Disc Plate,
Tilting Table 45 down 15 up, Disc Guard
for safety, Electricals : Rotary Switch.
Grinders also available with Standing/Sitting
height Pedestal on request. Wide range
of Polishing, Grinding machines &
Dust collectors are also available. |
| |
| |
| |
|
|
| |
|
| |
|
